Professional-Grade Rail Maintenance Tools
From precision impact wrenches to high-power rail saws, every Track Max tool is built for sustained, heavy-duty track maintenance performance.

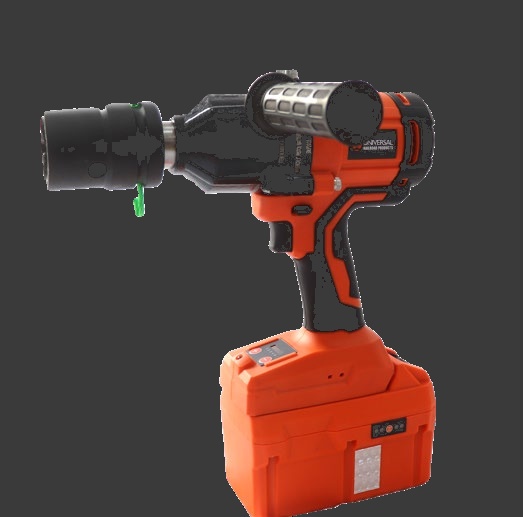

Impact Pistol Wrench
The most compact and agile member of the series. Designed for high-speed work and accessibility in confined track areas. One-handed grip for maximum manoeuvrability.

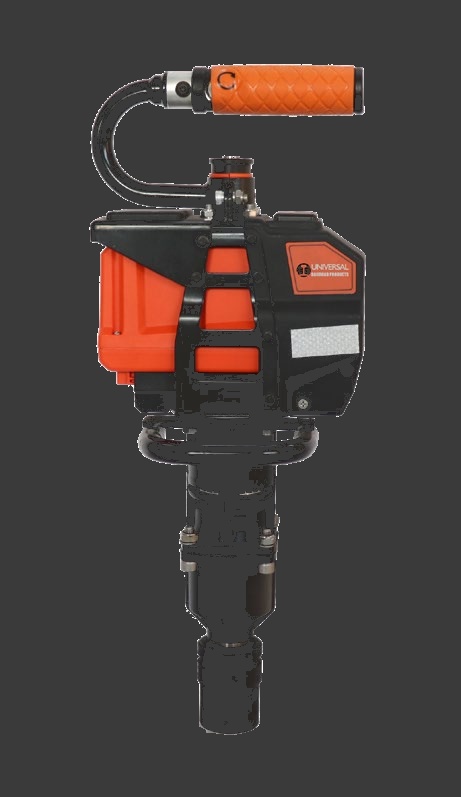

D-Handle Wrench
Robust powerhouse for maximum stability. Large enclosed rear handle provides secure grip to manage 3,500 Nm peak torque. Go-to choice for stubborn, rusted bolts.

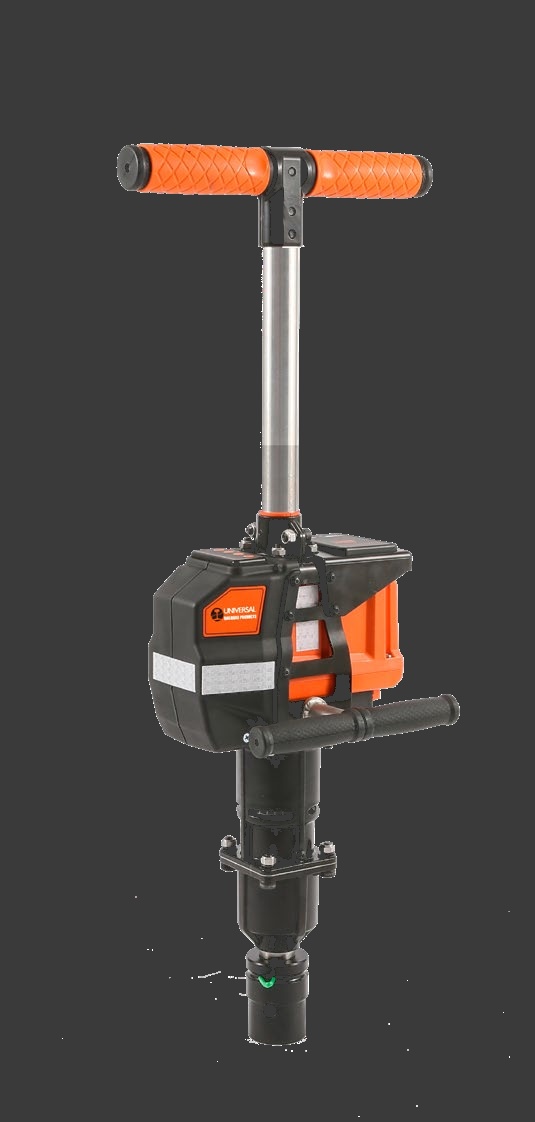

T-Handle Wrench
Optimised for vertical fastening tasks. Symmetrical design centres weight over the fastener, reducing lateral vibration for sleeper screw maintenance.

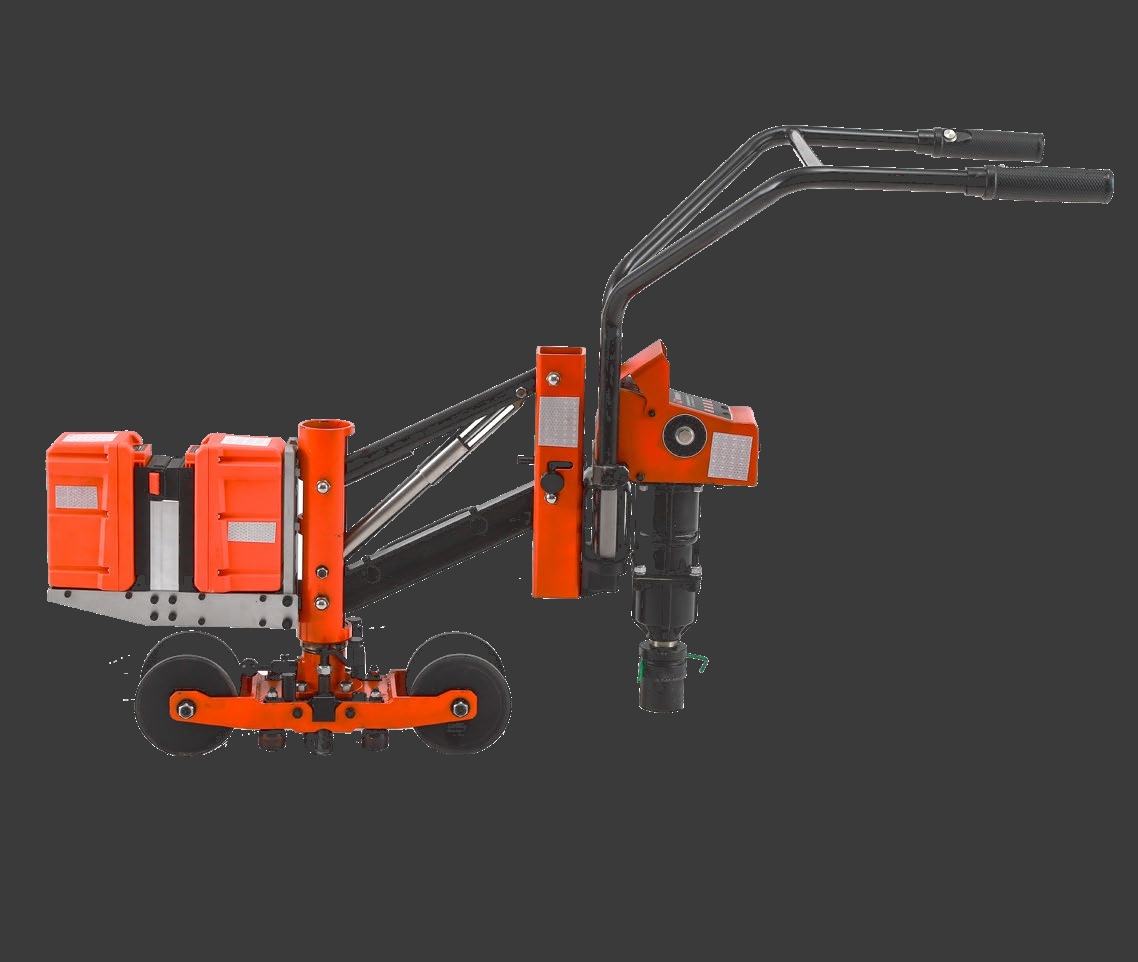

On-Track Wrench
Specialised frame with two integrated guide wheels sits on the rail head, carrying the machine's weight. Rolls effortlessly between fasteners for long-distance stretches.
| Parameter | Impact Pistol | D-Handle | T-Handle | On-Track |
|---|---|---|---|---|
| Operating Voltage | 36 V | 36 V | 36 V | 36 V |
| Max Torque (Tighten/Loosen) | 2,300 / 2,500 Nm | 3,000 / 3,500 Nm | 2,500 / 3,000 Nm | 3,000 / 3,500 Nm |
| Torque Interface | Digital LED | Digital LED | Digital LED | Digital LED |
| Weight (incl. Battery) | 5.8 kg | 11.5 kg | 11 kg | 41.5 kg |
| Dimensions (mm) | 230 x 97 x 345 | 560 x 280 x 203 | 790 x 235 x 135 | 1750 x 600 x 950 |
| Endurance (M24 cycles) | 480T / 560L | 860T / 950L | 860T / 950L | 3000T / 3300L |
| Battery Life | 1,000+ Cycles | 1,000+ Cycles | 1,000+ Cycles | 1,000+ Cycles |
Dual-Speed Rail Drill
Precision-engineered, emission-free solution for high-performance hole boring across all standard rail profiles. Intelligent dual-speed control maintains constant spindle velocity under heavy loads.
Rail Turnout Drill
Compact footprint for restricted, narrow spaces of rail points and crossings. Shortened chassis and optimised clamping geometry reaches turnout components unreachable by full-sized drills.

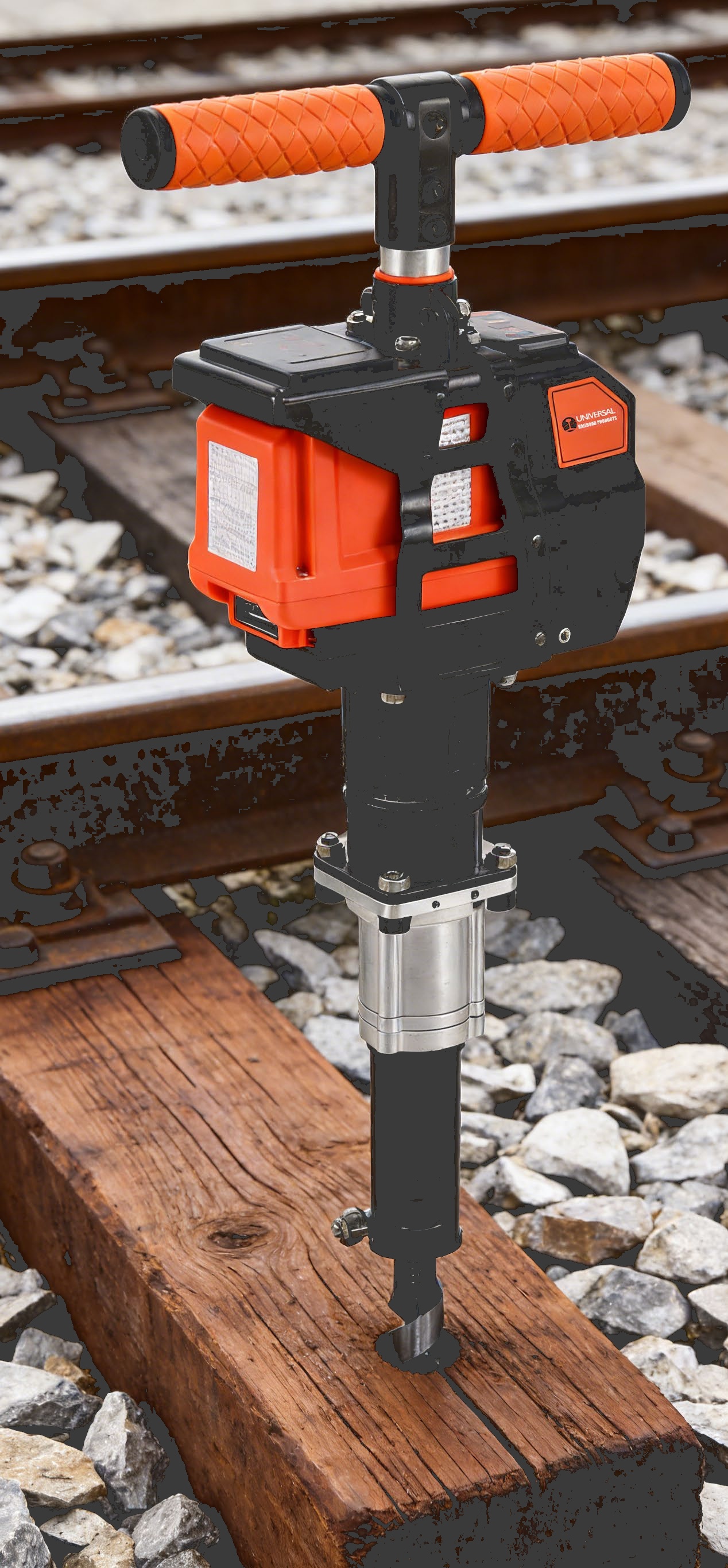

Auger Drill
High-torque, emission-free solution for drilling precision holes in timber sleepers and wooden rail infrastructure. Mechanical Depth-Stop Scale for uniform fastener installation.

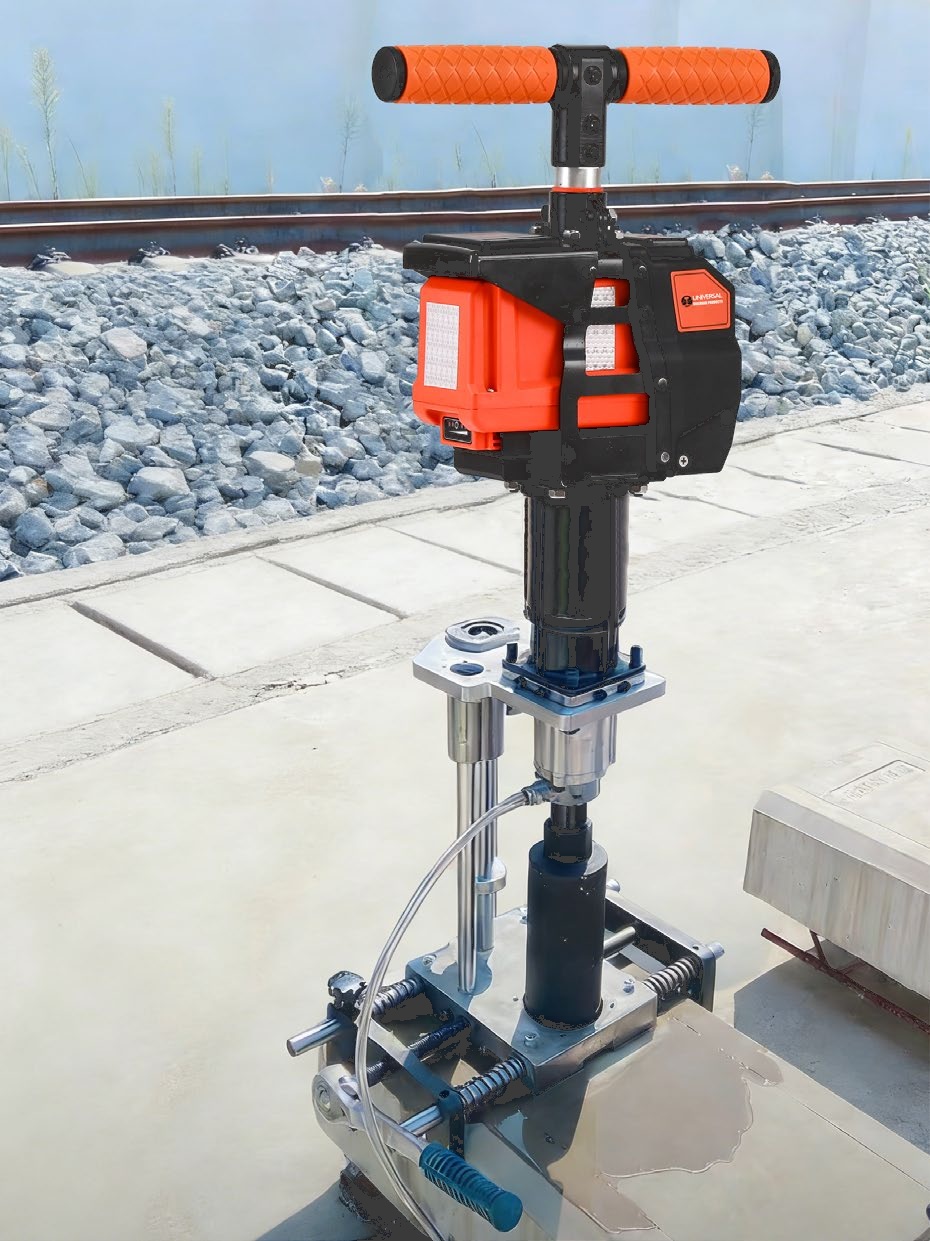

Concrete Sleeper Drill
Optimised for reinforced concrete penetration. Heavy-duty frame locks securely to the sleeper, providing a rigid platform that prevents bit wandering with maximum precision.

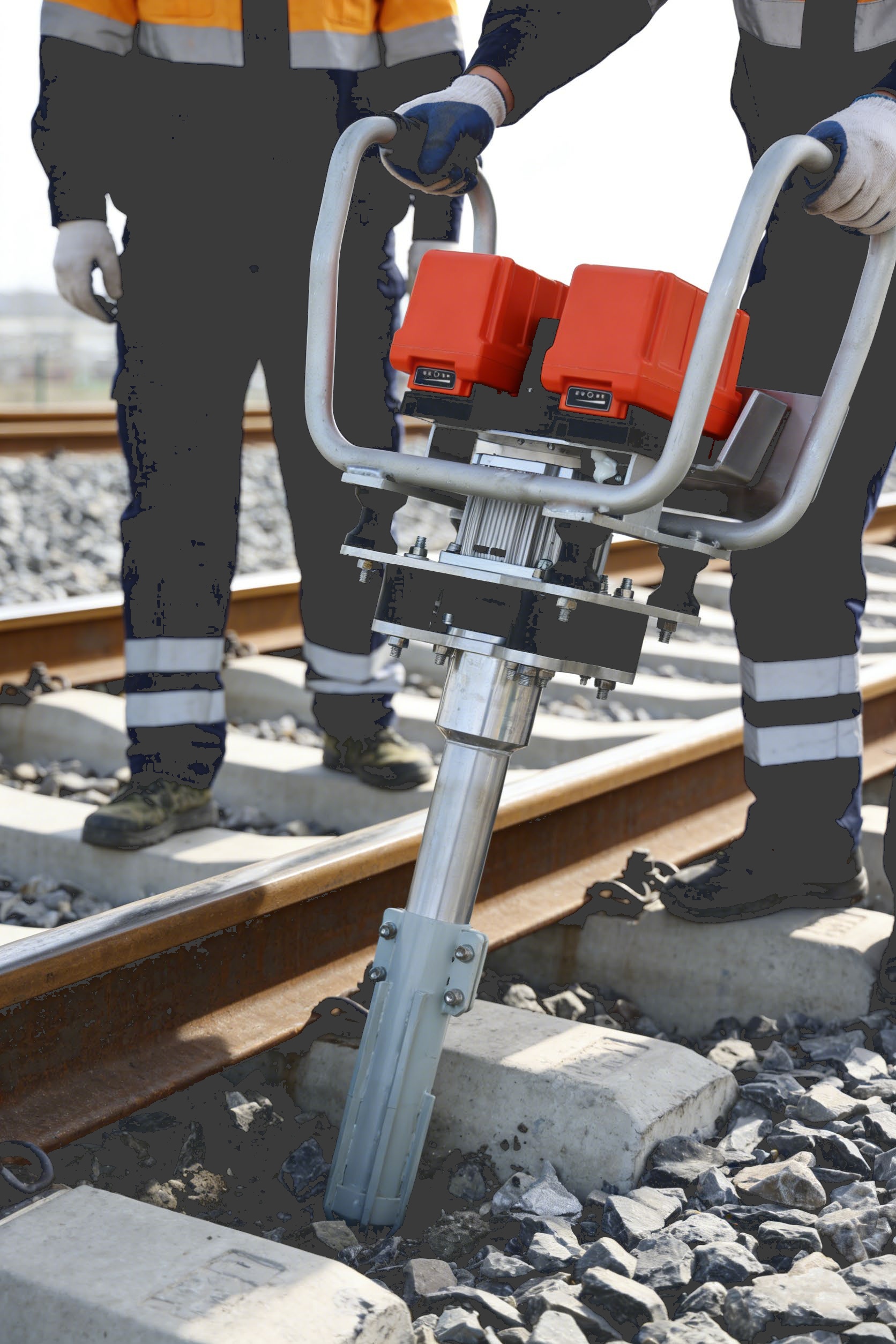

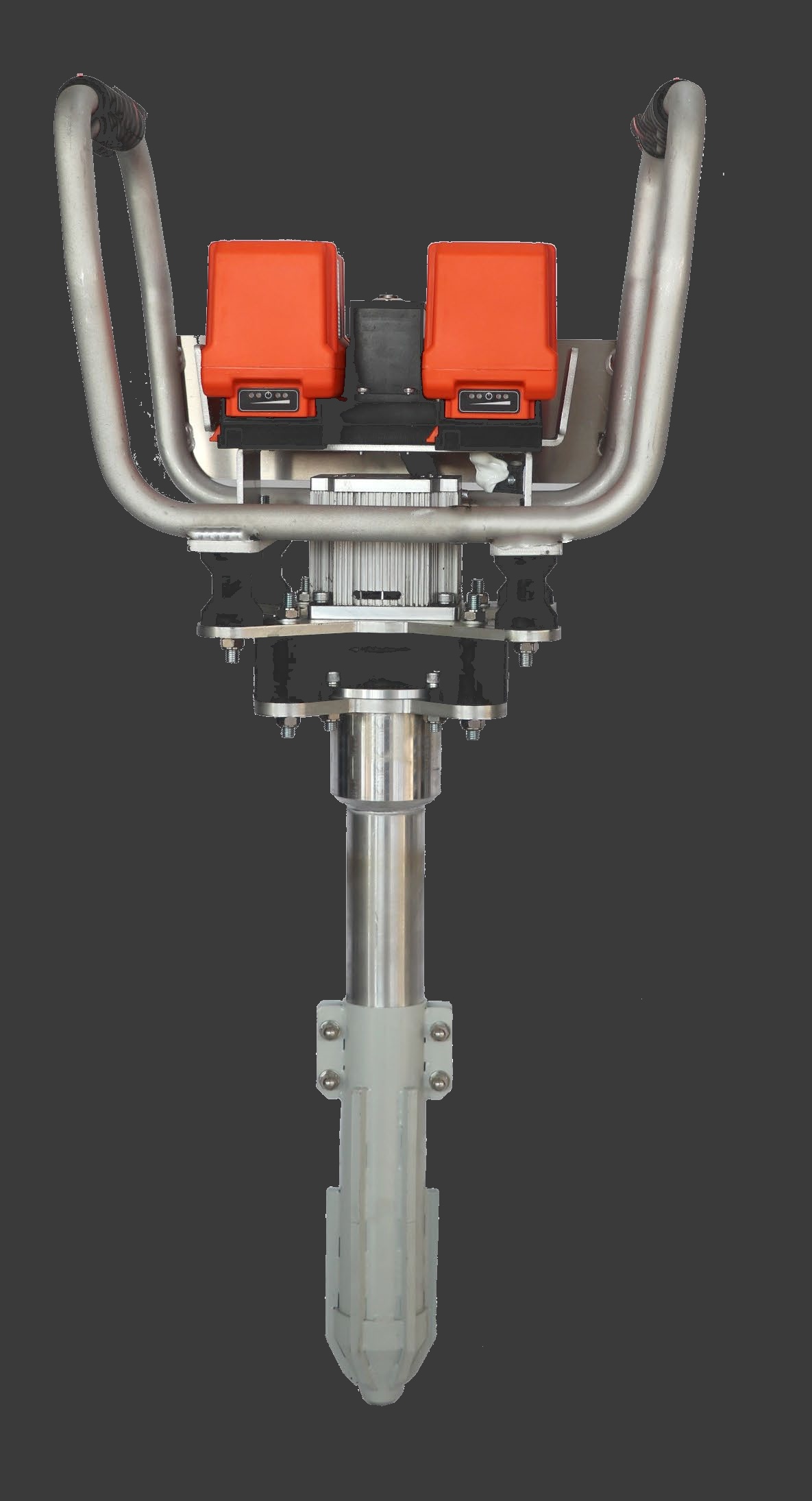

Rail Tamping Machine
High-frequency, emission-free ballast compaction. Advanced brushless motor delivers powerful, consistent vibrations for optimal consolidation. High-strength aluminium alloy with three-level vibration damping.
Tamping Machine on Track
Dual-battery configuration provides extended runtime for large-scale tamping operations. Ergonomic vibration-dampened handles reduce operator fatigue during sustained use.

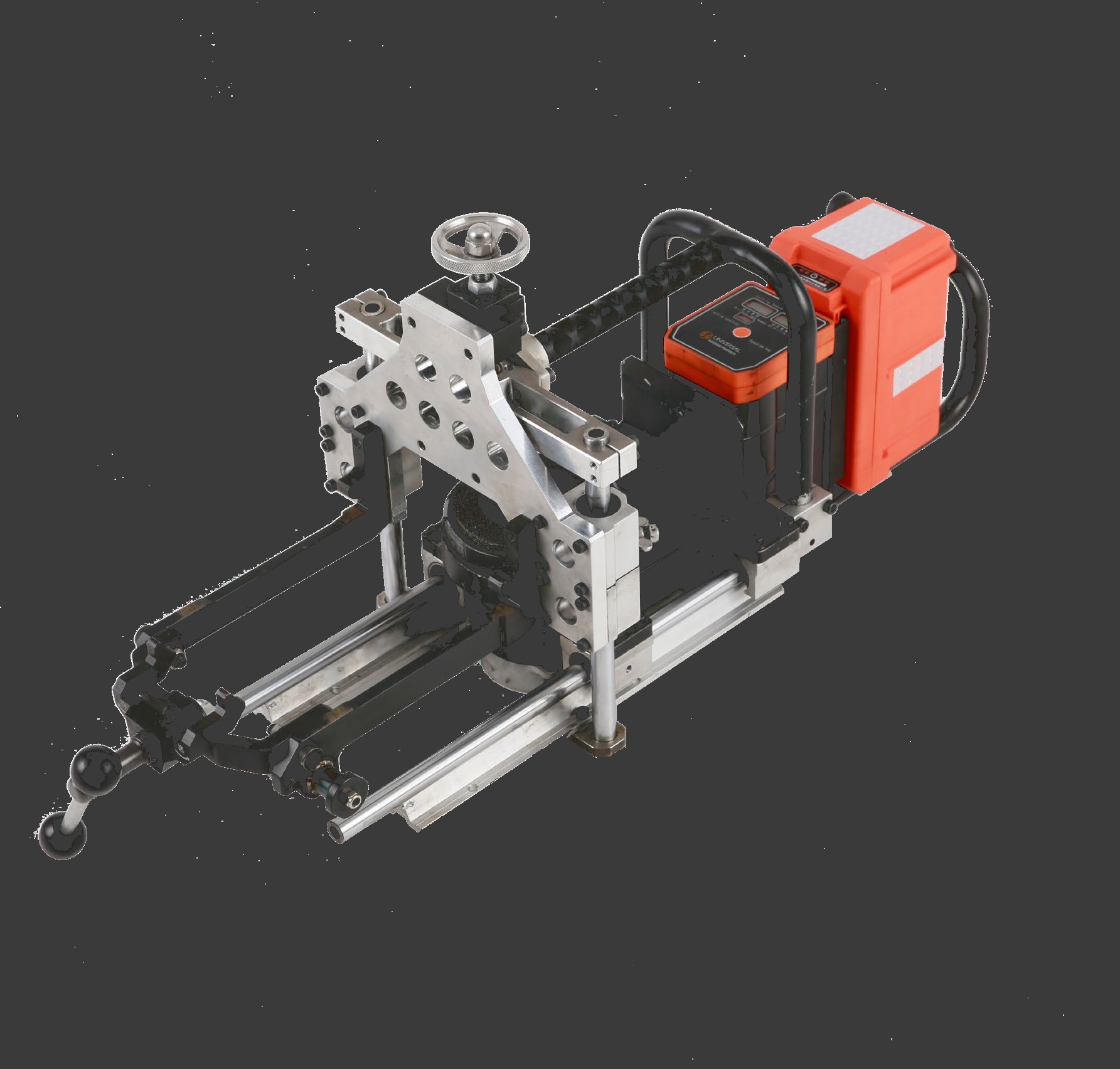

Rail Bottom Grinder
Precision-engineered for removing weld beads and surface irregularities from rail foot and web. Fits into narrow clearance for seamless restoration after welding.

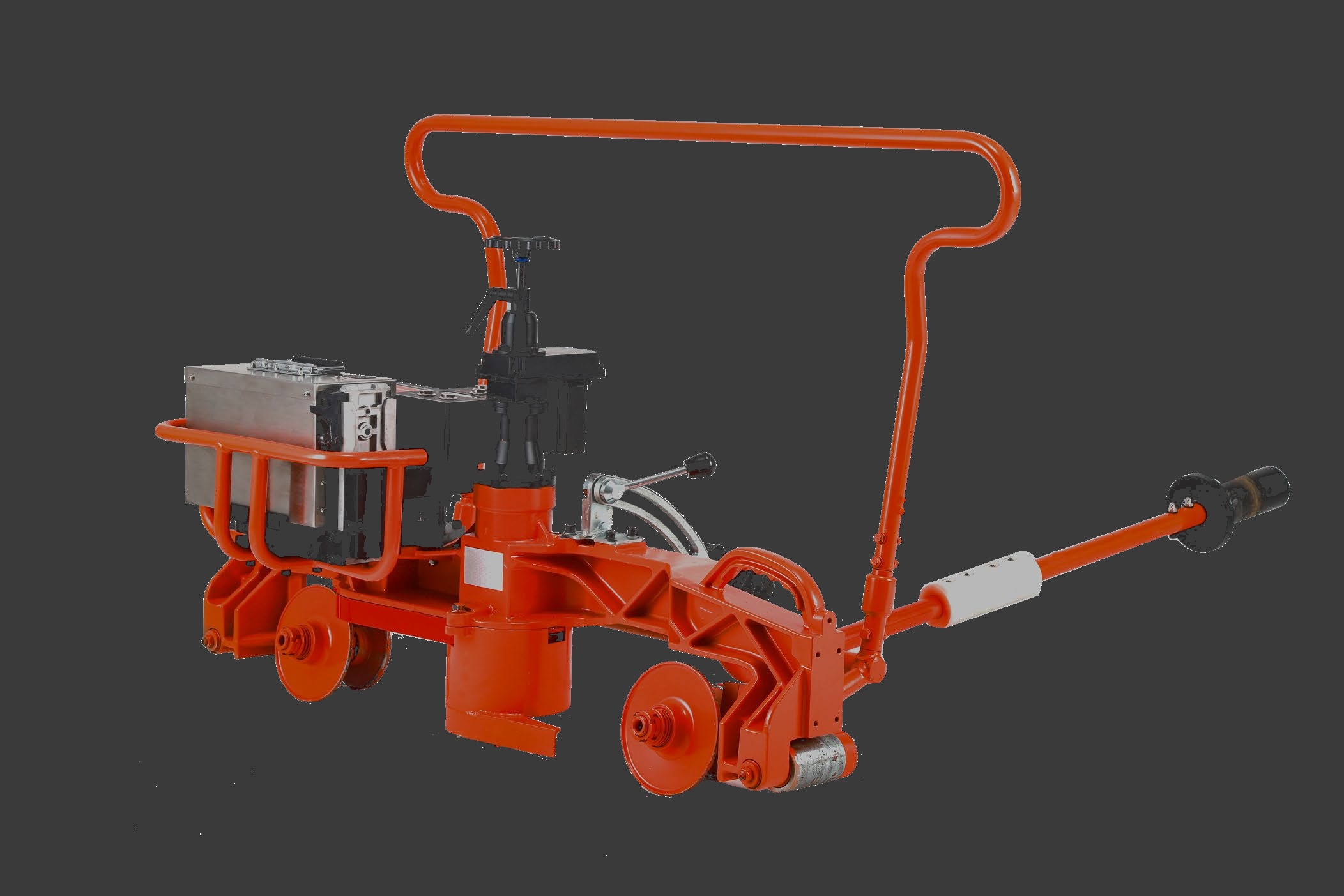

Multifunctional Rail Grinder
3-in-1: weld seam, corrugation, and switch rail grinding in one unit. Dual control system with mechanical and electronic feed. Three adjustable feed levels for precision work.

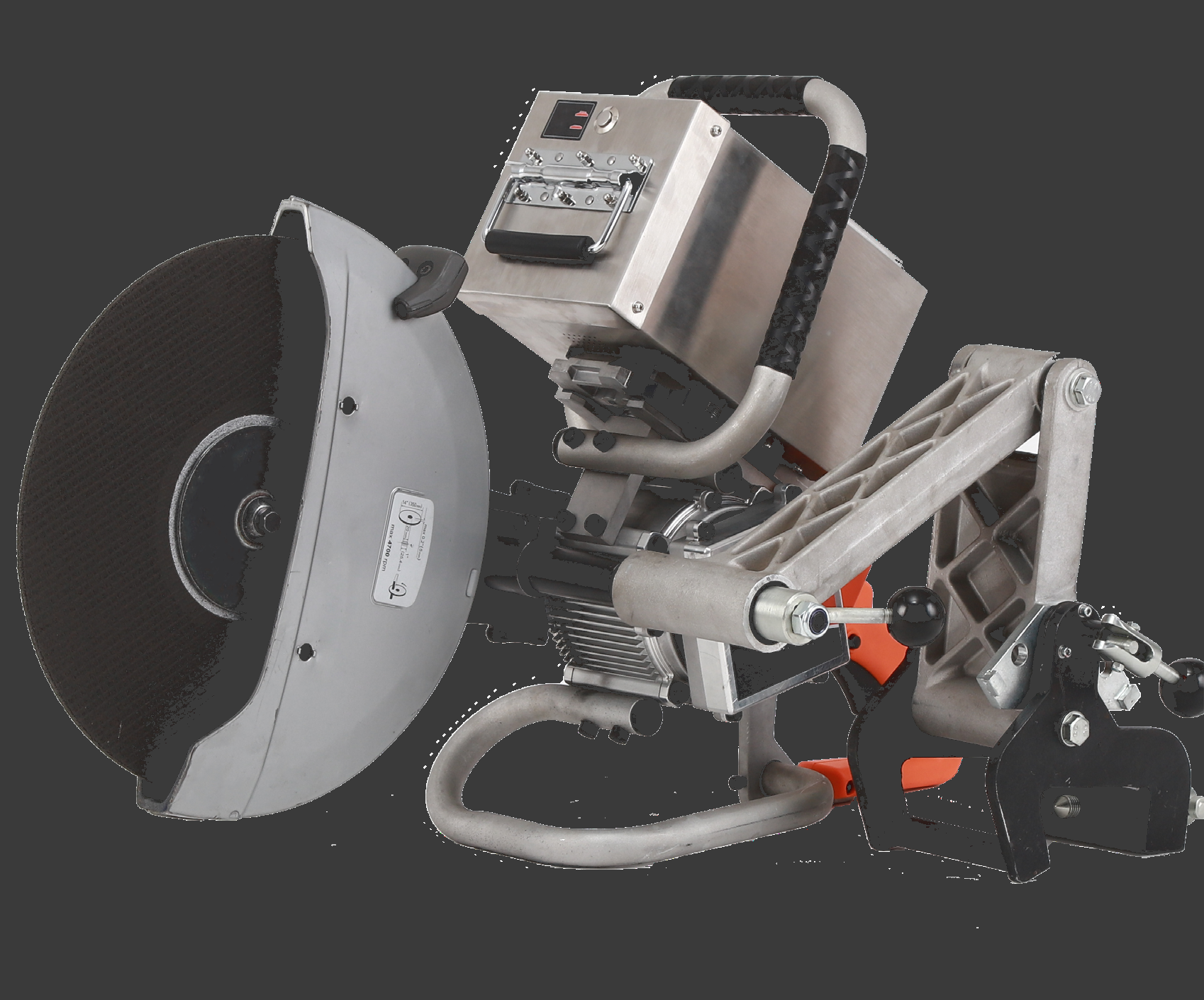

72V Rail Saw
High-efficiency abrasive cutting tool. 8kW brushless DC motor completes a UIC 60 rail cut in 100 seconds or less. External umbilical cord allows separate battery placement to reduce operating weight.

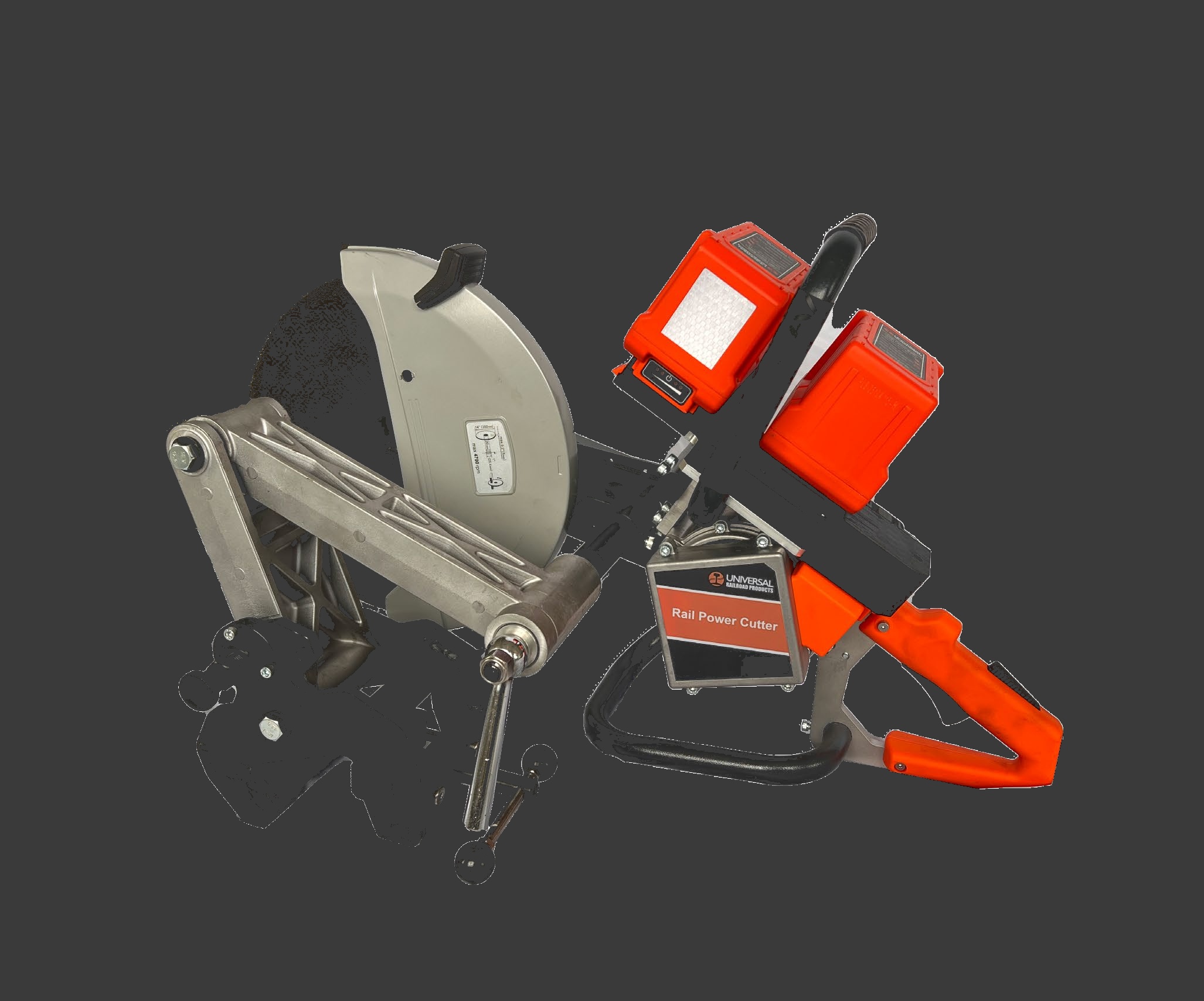

72V Rail Saw (Dual Battery)
Uses two standard 36V/12Ah batteries in series — shares power sources with your entire tool fleet. Breakthrough Battery Power Management (BPM) Technology eliminates voltage sag.
